Hydraulic Drum Jack-3T

Part Number:HDJ3000

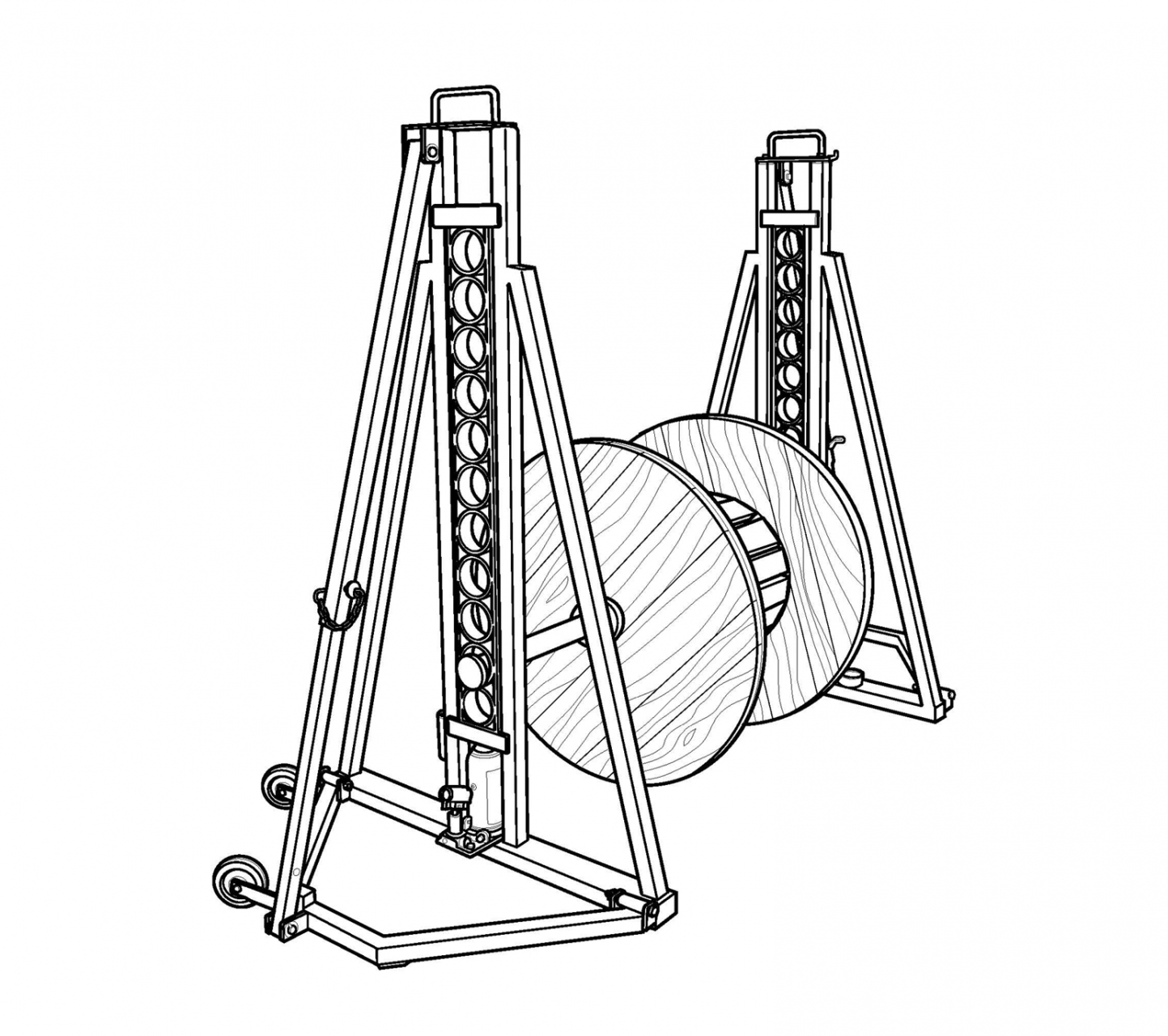

The HDJ3000 Hydraulic Lift Drum Jack provides a simple, efficient and cost effective method of paying out cable from large capacity drums.

AWhile there are two model HDJ's available in either 3 Tonne or 6 Tonne capacity, the Model HDJ3000 is the smaller model and is capable of handling drums up to 3,000kg max. load.

Maximum drum Diameter with standard axle:     2500mm
Maximum drum Width with standard axle:          1100mm
Maximum Weight:                                                3,000KG


  • Built in drum guides stop drum bolts from fouling on the frames.
  • Muiple axle location points allow for all drum sizes to be accommodated.
  • Frames are fitted with wheels to make them portable.
  • Provision is made for the axle to be carried on one of the frames.
  • All these features with convenience of hydraulic jacks makes the operation of unwinding large drums quick and easy.

Finish – Flame Red Powder Coat
Folding design of frame allows for easy transport and storage.

Height:     1600mm
Width:        930mm
Depth:        670mm

Axle: 50mm diam. x 1400mm (other choices available at additional cost)
Total weight 82 kg
(Includes two frames and standard axle.)

Longer axle available on request at additional cost.
