A-Frame Payoff Stand-100kg

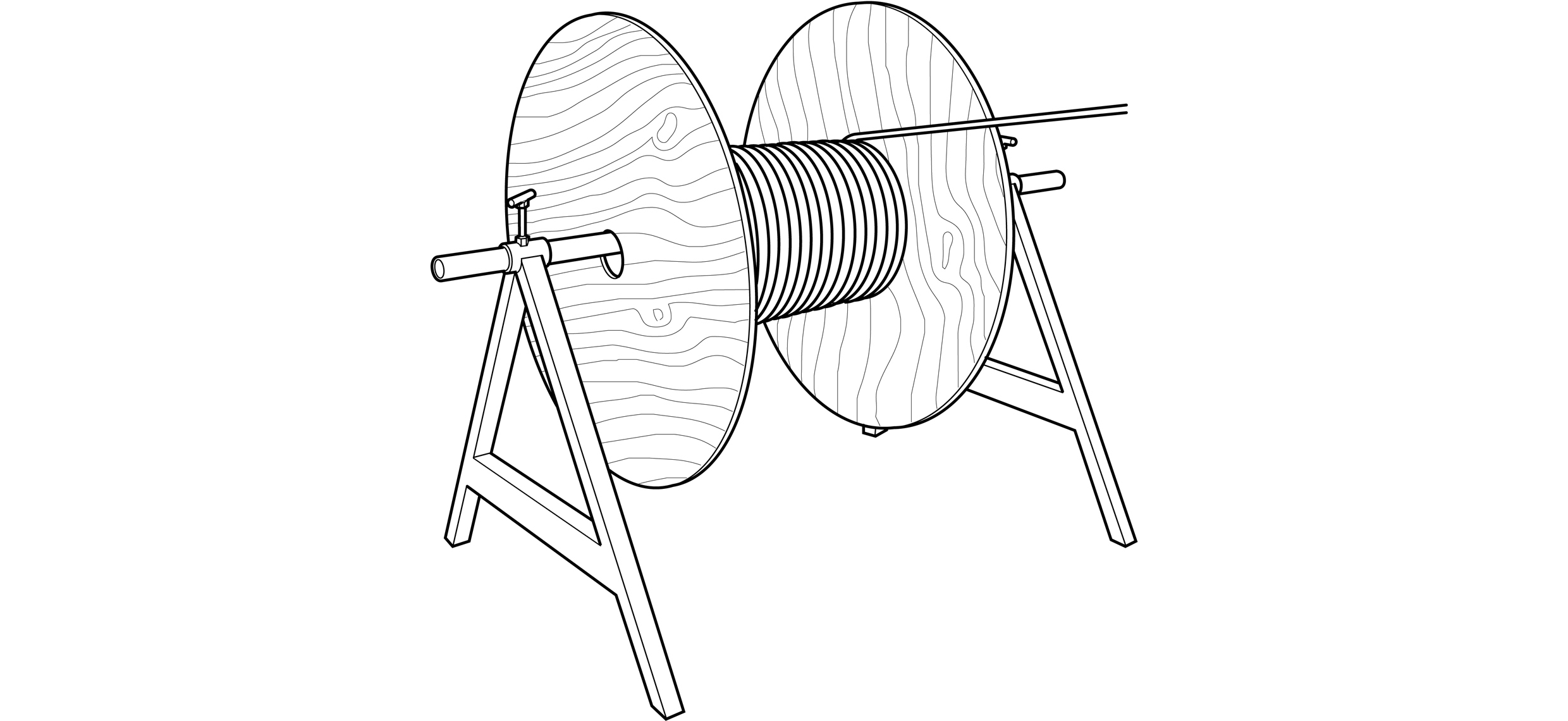

A simple to use cable payoff system consisting of two 'A' frames with a centre axle.
A budget priced quality built product suitable for anyone dispensing cable and for most cable installations.
This unit allows for multiple drums or smaller reels to be paid out at the same time.
A long working life can be expected due to all steel manufacture & welded construction.
Vehicle storage room needed is minimal.
Safety-Yellow powder-coat finish.
SPECIFICATIONS:
Maximum drum diameter: 800mm
Useable axle width between the two 'A' frames: 900mm
Minimum cable drum centre hole: 27mm diameter
DIMENSIONS:
Width: 575mm
Height: 500mm
Weight: 5.5kg
Max Load: 100kg
