Cradle Roller-500kg

Part Number:KR

The Model KR Cradle roller is a quick and easy drum cable payoff unit with a 4-Roller semi-portable Payoff unit that will accomodate drums from 450mm up to 1,200mm diameter and up to 500kg maximum load.

Maximum drum widths of 760mm can be handled.

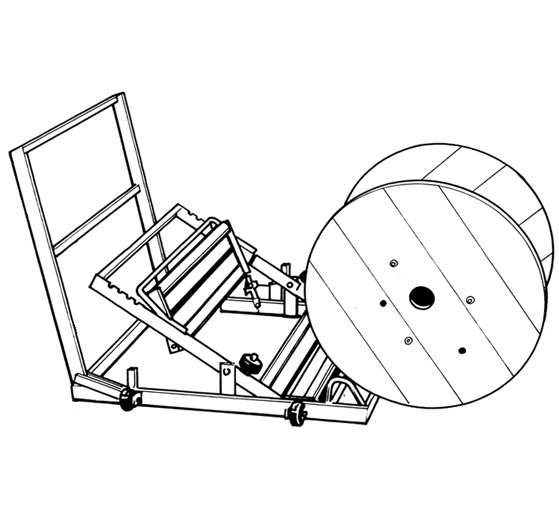

It also features a roll-on/roll-off loading mechanism by means of a pivoting base frame which allows the drum to be loaded & unloaded at ground level with no manual lifting of the drum.

Adjustable four roller system will cater for slightly damaged drums.

Two set wheels & one pivoting caster are fitted to the base frame, which allows for easy manoeuvring of unit.

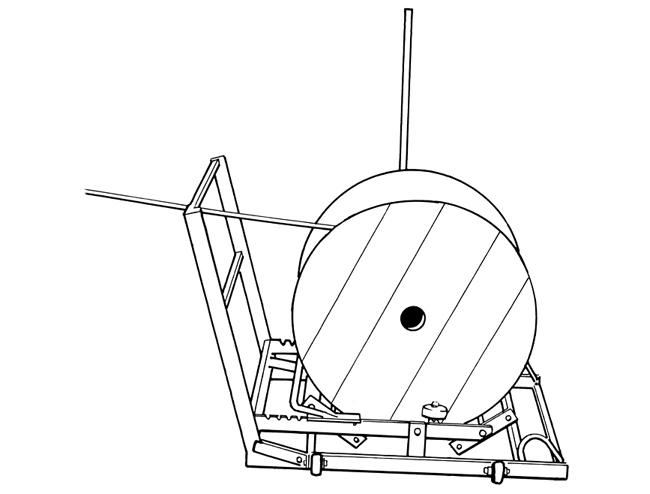

A crash bar is fitted (as per the illustration) to protect the operator from the drum when this unit is being used with an electrical cable winding machine.


Drum Diameter:   450 - 1200mm
Drum Width:        760mm
Max. Load:          500kg


Height              Width             Depth             Weight
270mm           1130mm         1130mm            50 Kg
