Cable Roller [3-Rollers] 200kg

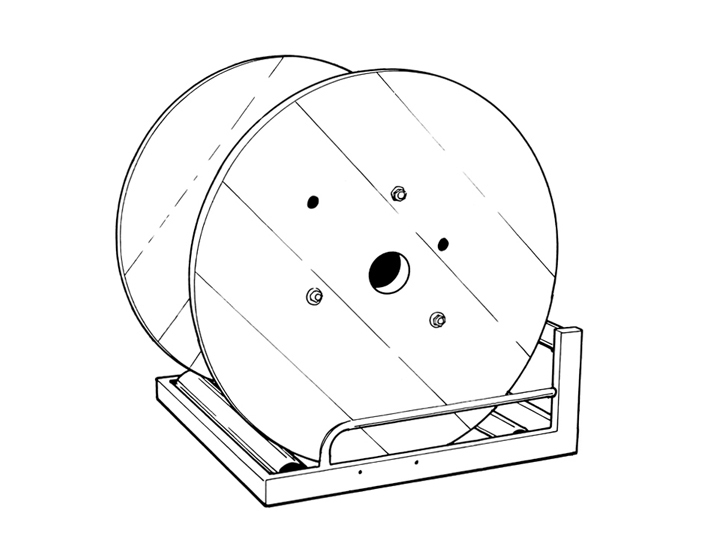

Our popular A-Series Cable Rollers simply roll the reel onto the cable winder, feed the cable between the rear roller and base (in the case of the A-Series) and your are ready to operate.
The reel will roll on the base as the cable is dispensed and the reel cannot dislodge from the base as the cable is captive between the rear roller and base.

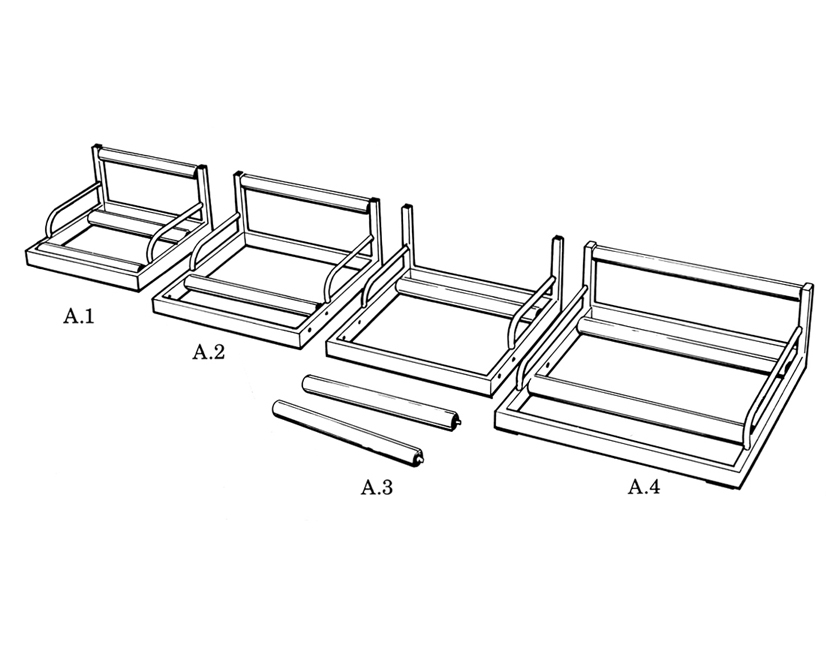

The base sizes and four model variations availabe covering small to large reels up to 90mm diameter and 200kg maximum load.
Accommodates all cable drums from 450mm to maximum size of 900mm diameter x 600mm wide.
Larger Frame than A2 or A3 and features 3 rollers, 2 of which are located on the base and one located at the top rear.

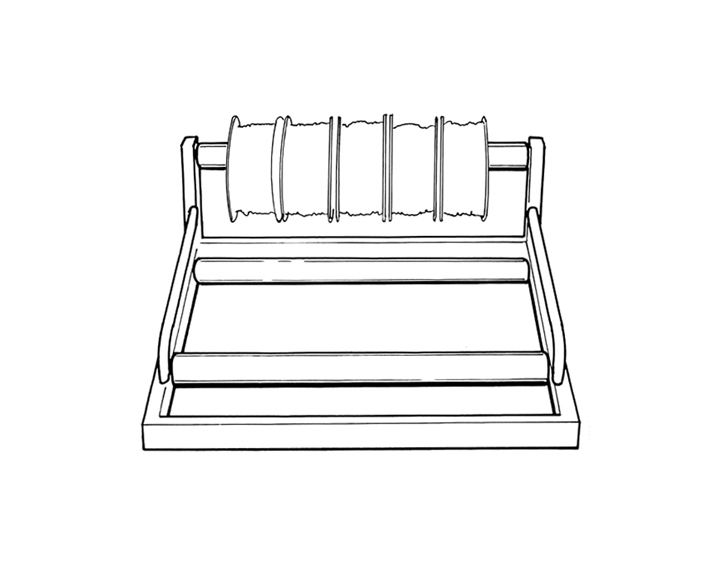

Note: Damaged drums smaller than 450mm diameter can be fitted to top roller.
(drum centre hole 50mm min)
Flame-Red powder-coat finish.
SPECIFICATIONS:
Height: 270mm
Width: 675mm
Depth: 675mm
Weight: 15kg
Max. Loading: 200kg
