Hand-Winder 800mm Cage for Cable
The HW1/800 Handwinder with meterhead is a winding and measuring machine designed and manufactured by Starroll Industries.
It is suitable for measuring cable, hose, flexible tubing & rope. Wire rope can be measured if a special meterhead is fitted to the handwinder.
Max diameter of product through the standard meterhead is 32mm, but we also manufacture a model for winding & measuring hose that is capable of handling hose to a diameter of 60mm.
(Model HW1/800/HOSE - shown separately)
The meterhead height is adjustable.

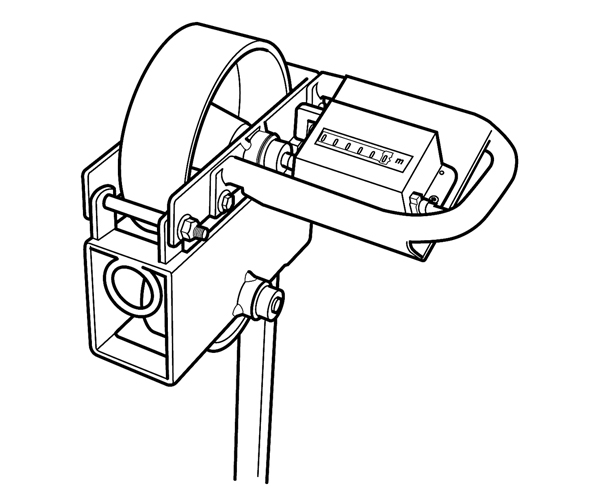

This winder is fitted with a mechanical counter, and is designed to measure in metres (max. 9999.9m)
This unit will wind flexible materials into coils. Half of the winding cage slides off the axle to allow the
wound coil to be taken from the winder.
Fitted wheels allow the unit to be moved.
Flame Red powder coat finish.
Two winding cage sizes are available for selection.
Small: 600mm outside diameter, 280mm centre diameter, & 250mm wide. (Model: HW1/600)
Large: 800mm outside diameter, 440mm centre diameter & 250mm wide. (Model: HW1/800)
DIMENSIONS & WEIGHT:
Height: 1200mm
Width: 420mm
Length: 1350mm
Weight: 40kg
CAPACITY:
Maximum loading: 90kg

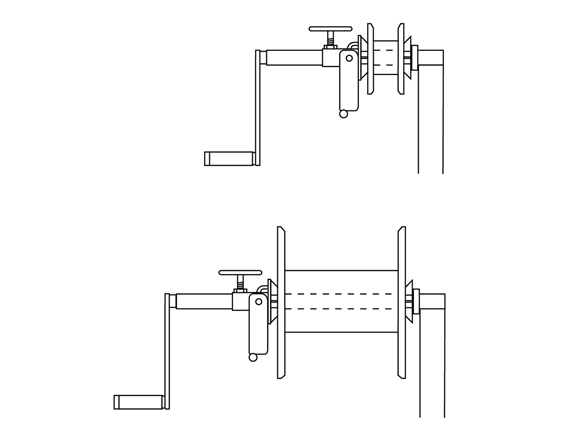

HW1/DWA Drum Winding Attachment
OPTIONAL DRUM WINDING ATTACHMENT: (Model HW1/DWA)
Fits on the HW1 Handwinder (after removing coiling cage) and allows a variety of small drums such as metal reels, wood, cardboard, plastic, etc. to be used up to a maximum size of 330mm wide and 500mm in diameter.
MINIMUM DRUM CENTRE HOLE:
Attachment will fit up to a 45mm centre drum hole.
