Winding/Coiling Machine-AC Inverter

Part Number:W2/AC

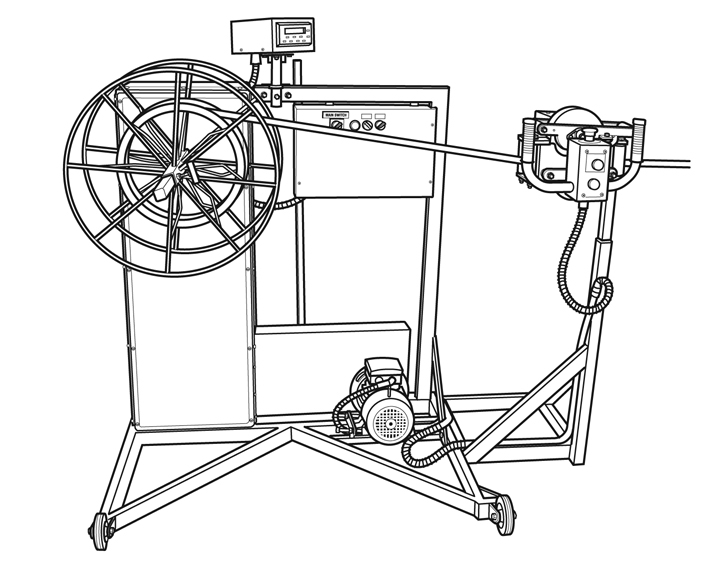

The W2/AC is a more sophisticated version of the W2 Winding/Measuring machine and is primarily designed for efficient winding/measuring of product into coils for easy removal.

The coiling cage provided is 600mm diameter  x 250mm width and an optional 800mm diameter coiling cage is available at additional cost if required for larger cable or larger bend radius cable.

The unit is also provided with a small drum winding attachment allowing product to be measured and wound directly onto plastic, metal or cardboard drums/reels up to  600mm diameter x 400mm width and up to a maximum load of 100kg.

It features a 0.75kw brake motor with inverter speed control allowing for included features such as:

  • Electric brake motor arrests "over-run" at the end of the count.
  • Programmable metric electronic counter (allowing for the winder to be recalibrated)
  • Automatic switch-off at the end of a preset cable length
  • Auto slow-down speed 10 meters before the the end of the preset cable length  (adjustable)
  • Programmable metric electronic counter, which also allows for the winder to be recalibrated.

Inching can be achieved by using the forward reverse jog button.
A "Dead-Man" switch is built into the handgrip of the meterhead for operator safety.

The inverter has 2 winding speed ranges:
Setting 1 for the coiling cage & larger drums.
Setting 2 for small reels.

Both speed ranges are fully variable with the speed control knob.

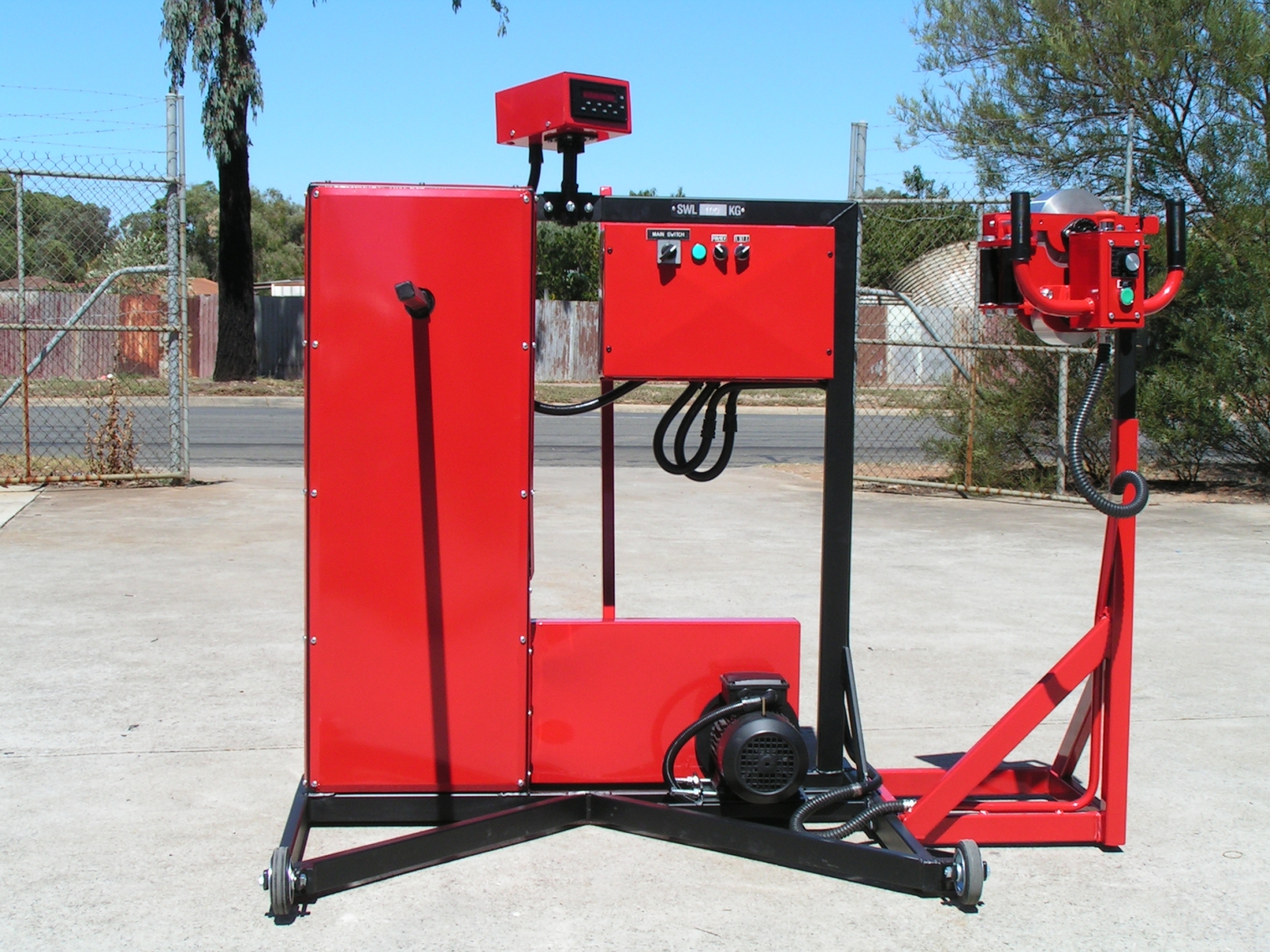

Flame Red powder-coat finish.

MECHANICAL FEATURES:
A coiling cage and drum winding attachment is supplied.
Two coiling cages sizes 800mm diameter or 600mm diameter can be ordered.
This winder is designed to run parallel to cable racking.
Wheels, (one pivoting) are fitted to the base frame to assist in moving the winder.

ELECTRICAL PROTECTION:
Main supply circuit breaker.
Control wiring circuit breaker.
Inverter has inbuilt protection.
One emergency stop button on the meterhead.

SMALL DRUM CAPACITY:
Maximum size: Diameter 600mm x width 400mm.
Maximum loading: 100kg.

WINDER DIMENSIONS & WEIGHT:
 Length          Width          Height         Weight
1800mm        800mm        1520mm        150kg

Power supply required 240VAC / 10A  GPO
