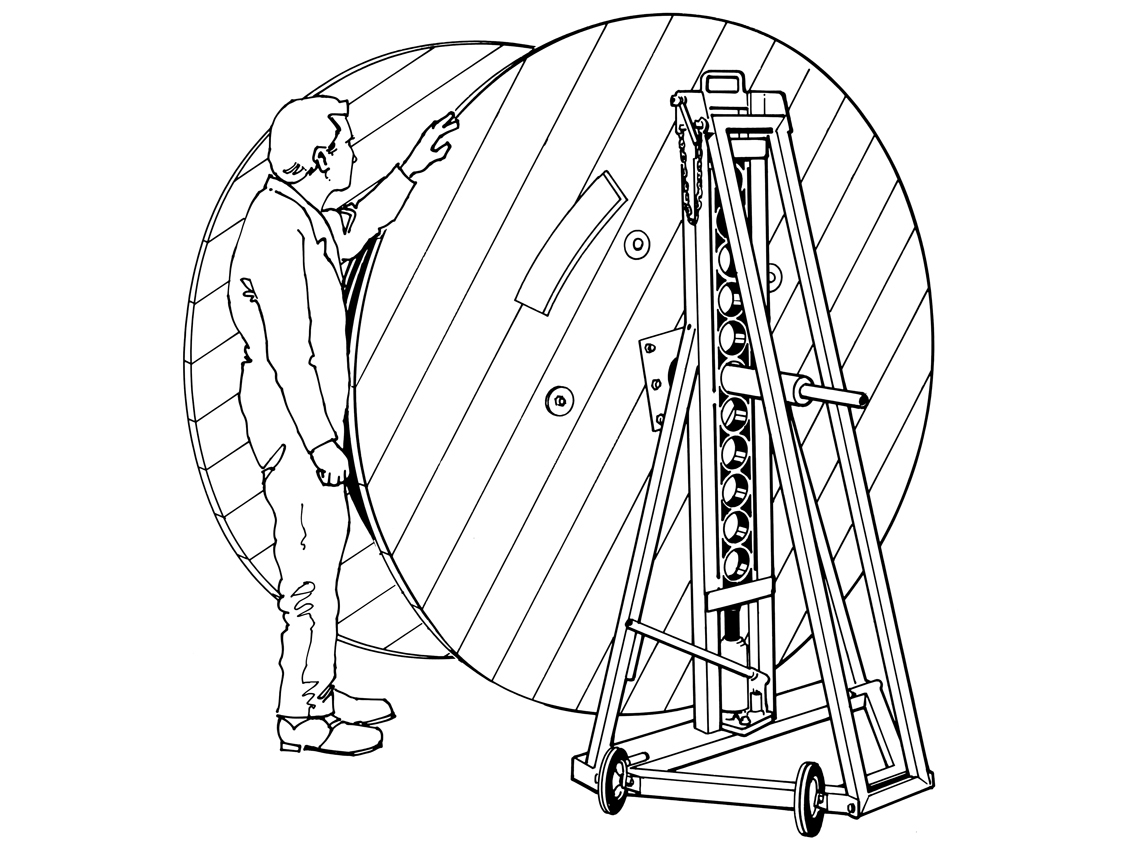

Hydraulic Drum Jack-6T
The HDJ6000 Hydraulic Lift Drum Jack provides a simple, efficient and cost effective method of paying out cable from large capacity drums.
While there are two model HDJ's available in either 3 Tonne or 6 Tonne capacity, the Model HDJ6000 is the larger model and is capable of handling drums up to 6,000 kg max. load.
Maximum drum Diameter with standard axle: 2,600mm
Maximum drum Width with standard axle: 2,000mm
Maximum Weight: 6,000KG
- Built in drum guides stop drum bolts from fouling on the frames.
- Muiple axle location points allow for all drum sizes to be accommodated.
- Frames are fitted with wheels to make them portable.
- Provision is made for the axle to be carried on one of the frames.
- All these features with convenience of hydraulic jacks makes the operation of unwinding large drums quick and easy.
Finish – Flame Red Powder Coat
Folding design of frame allows for easy transport and storage.
Height: 1,800mm (standing) 2,320mm (folded)
Width: 980mm (standing) 980mm (folded)
Depth: 700mm (standing) 220mm (folded)
Axle: 70mm diam. x 2,500mm (other choices available at additional cost)
Axle Weight: 77kg
Total weight 217 kg
(Includes two frames and standard axle)
Longer axle available on request at additional cost.
