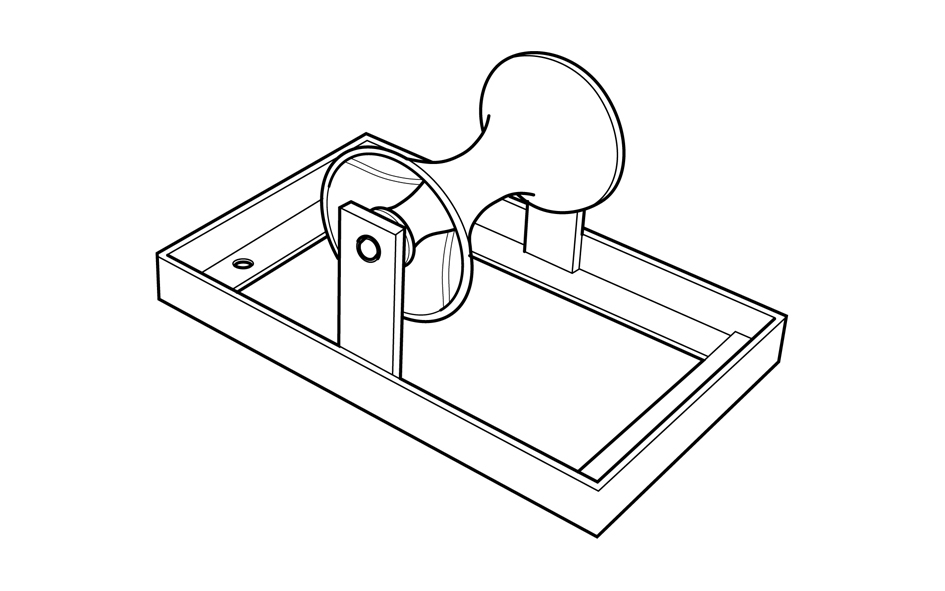

Cable Support Roller-Flat

Part Number:C1

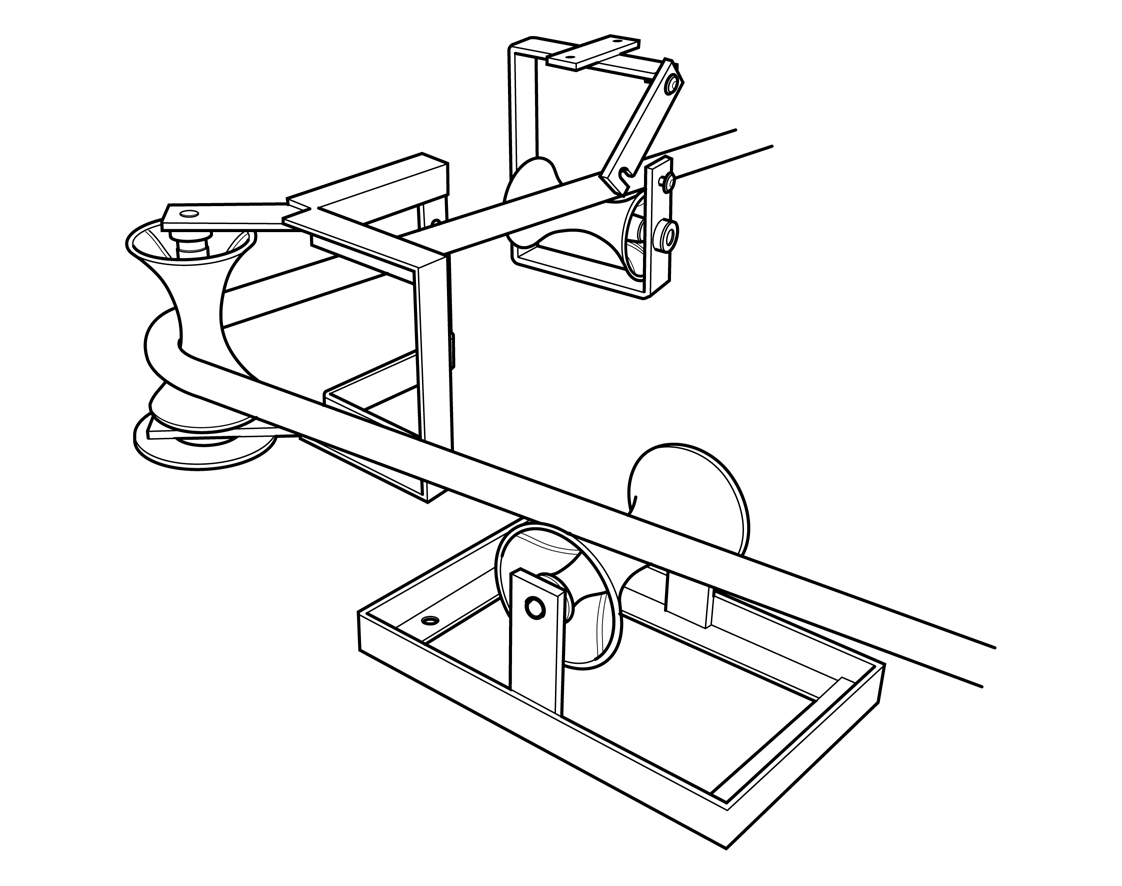

The C1 Model Cable Support Roller features an aluminium cast roller in a steel frame and has been designed to provide cable support while pulling cable in and around tight locations minimising cable damage and/or stress.

They all feature steel 15mm diameter axles.
The axle is supported in sealed roller bearings.


Model:       Height           Width           Depth         Weight
C1              200mm          260mm         400mm         6.3kg

Maximum loading all units: 200kg
