Drum Payoff Unit - 3,000kg Lift

Part Number:PO3000

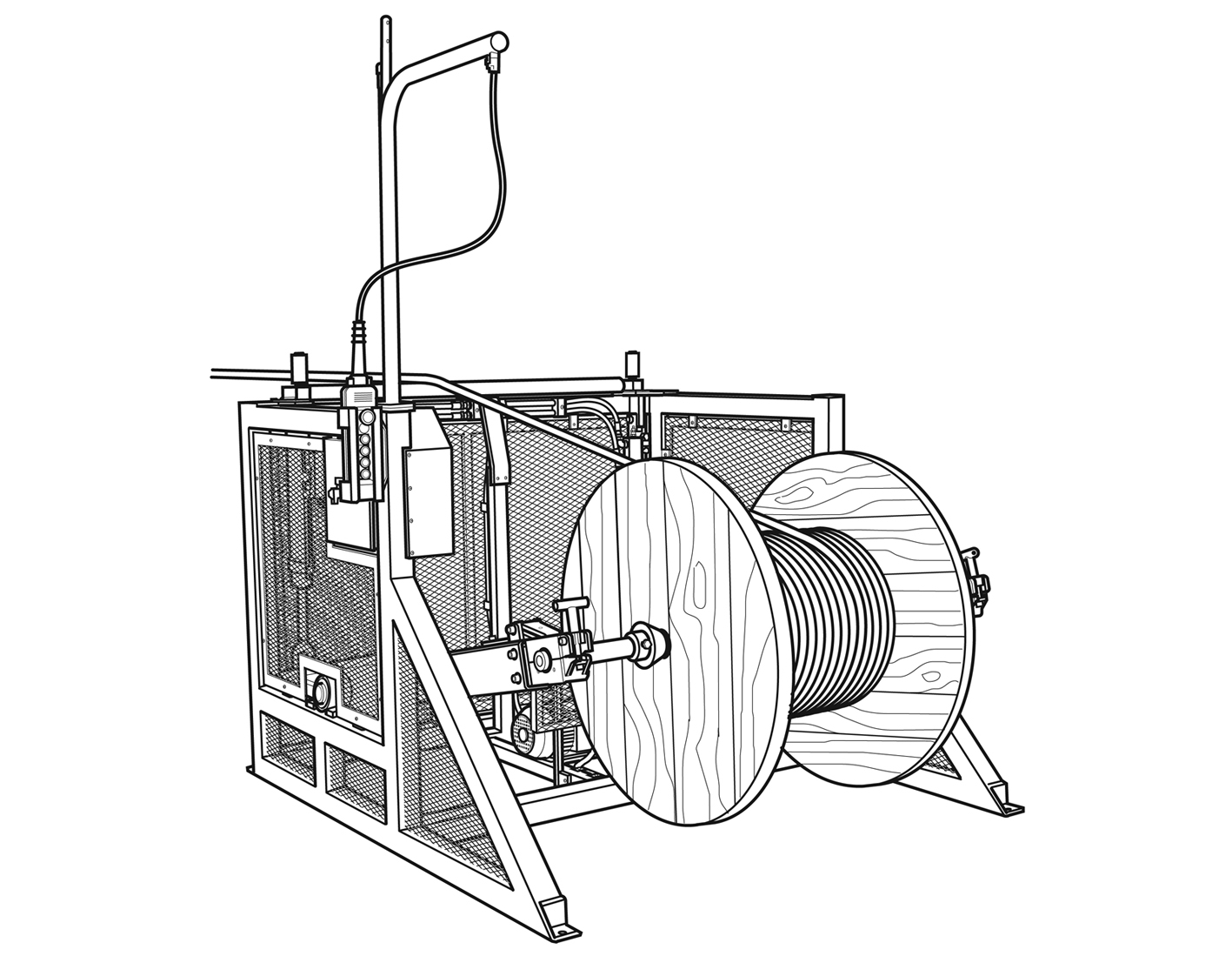

The PO3000 Model Drum Payoff machine is a heavy-duty design machine for the electric/hydraulic lift and lower of large drums up to 3,000kg.

The unit will handle drums up to 2,000mm diameter x 1,100mm  width.

Function:
Two pivoting arms with axle are controlled by an electrical hydraulic unit, which lifts and lowers the drum by electrical switching.

The axles are fitted with two tapered cones, which keep the drum centred during the payoff process.
Bearings are fitted to the axle support cups to allow the axle to rotate freely.

A full width guide roller is fitted to the payoff, which supports the cable as it leaves the drum.
Electrical control is via Stop/Start, Up/Down & Emergency Stop buttons. This control is located next to the axle end.

A safety enclosure is fitted to the sides & end of the PO3000 drum payoff unit.
The PO3000 payoff unit is designed to be bolted to the floor & is not moveable.

Flame Red protective coating finish.

DRUM CAPACITY:
2000mm diameter x 1100mm width
Maximum Drum Weight: 3000kg.

FRAME DIMENSIONS:
Length:        1.8 metres
Width:             2 metres
Height:         1.2 metres

Unit Weight: 500 KG

Electrical hydraulic pack: 1.5KW.  3Ph 415vAC power supply.
