Mechanical Lift Cable Jack-1000kg
The Model MJ Mechanical Lift Cable Jack will provide an excellent solution for anyone wishing to dispense cable from drums up to 1,000kg weight.

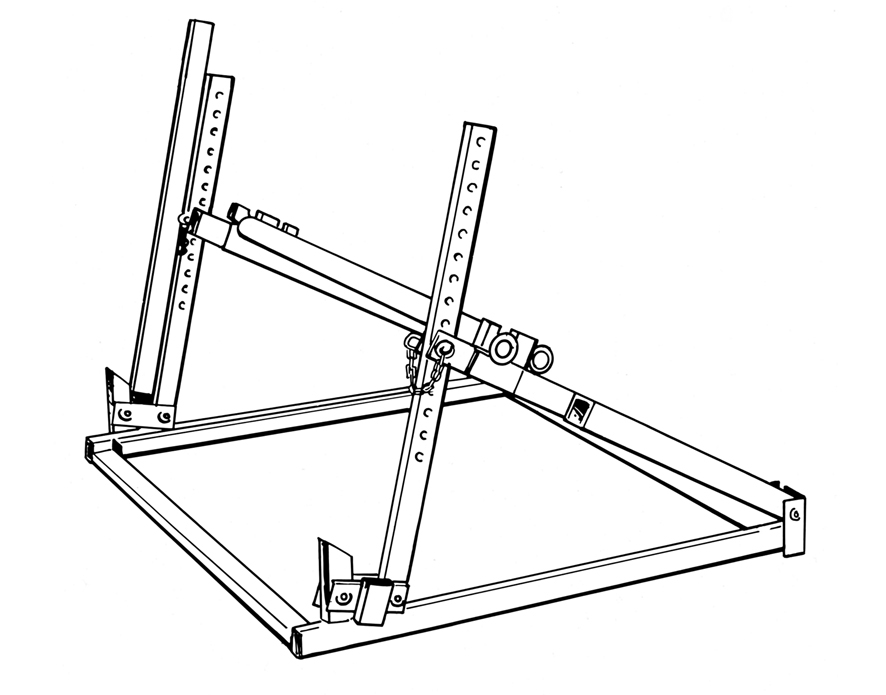

A-Frame type, axle supported, drum jack. Inbuilt jack system with lifting lever, lifts drum clear of ground.

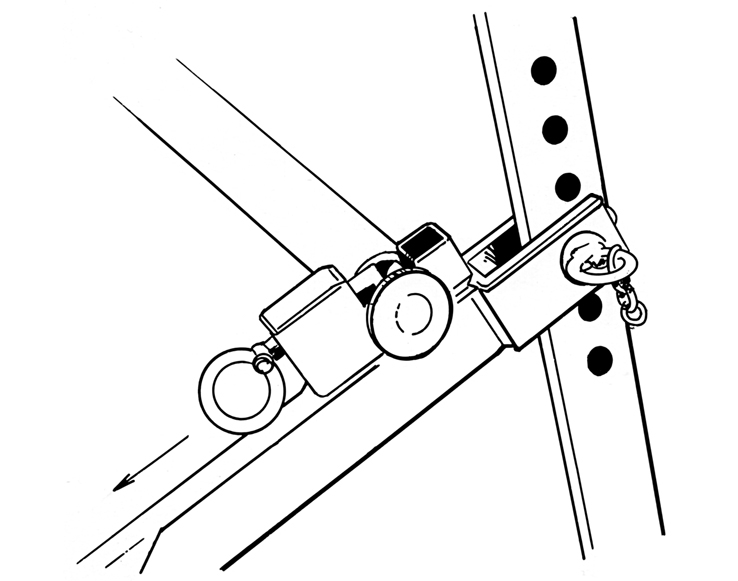

Fully adjustable frame allows for various size drums. Snap lock allows quick fitting of axle to frame.

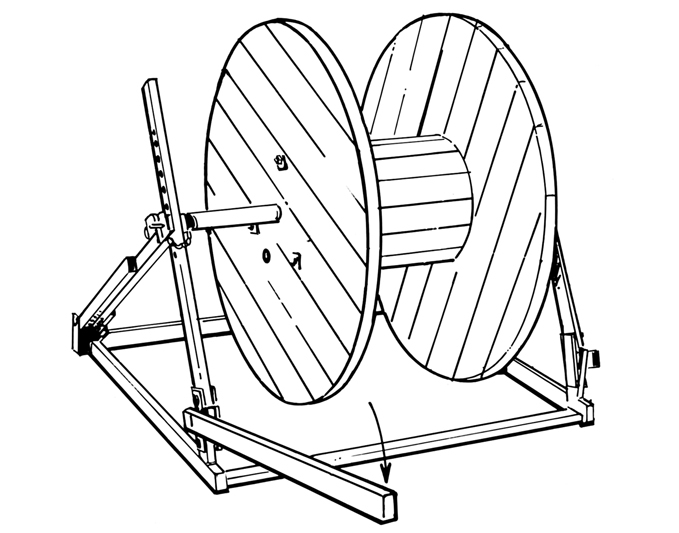

This unit will handle drums up to 1,300mm diameter x 1,000mm width and features an easy lift mechanical lever for lifting the drum clear of the floor once positioned.
Features:
A unit which is quick & easy to payoff drums.
Accommodates drums 1300mm diameter maximum x 1000mm wide.
Maximum Drum Weight: 1,000kg.
Flame Red powder-coat finish.
Option:
Optional axle bearings & cones available.
Wheels can also be fitted to make the jack portable.
SPECIFICATIONS:
Maximum drum size:
1300mm diameter x 1000mm wide.
Maximum drum weight: 1000kg.

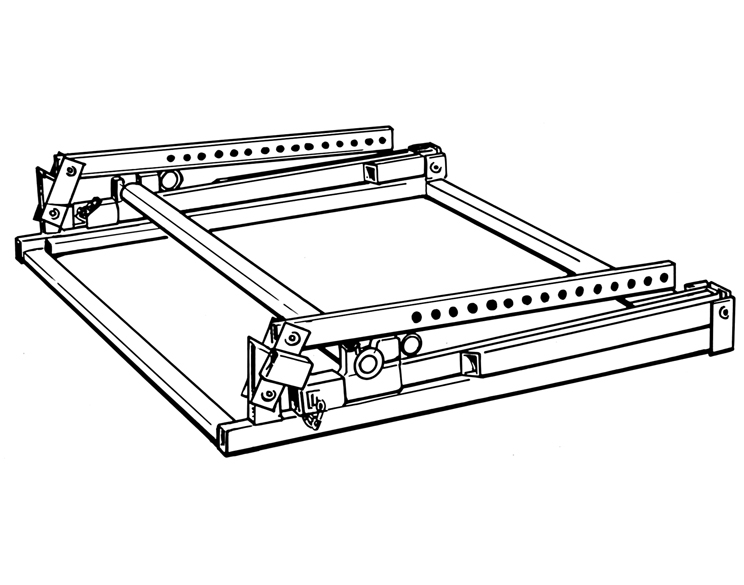

Unit folds into compact size for transport.
FOLDED DIMENSIONS:
Height | Width | Depth |
Weight |
300mm | 1,100mm | 1,100mm | 50kg |
